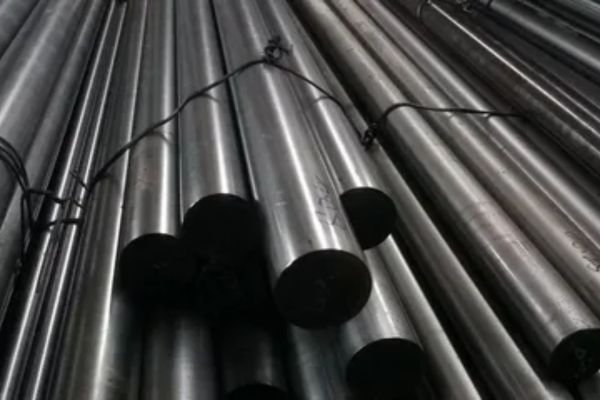

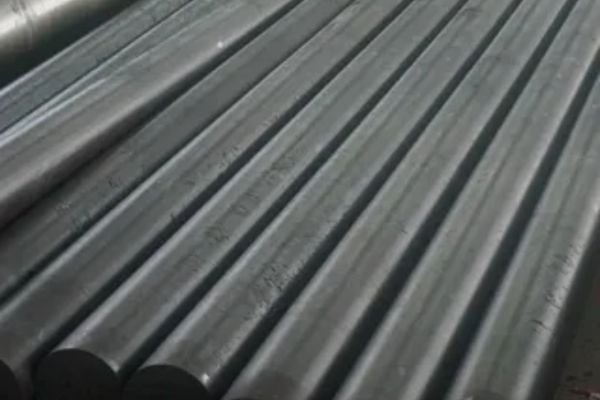

Samuel Steel, having its incorporation in 1995 and its head office at Abuja, Nigeria, is a prominent producer and exporter of high-strength Carbon Steel EN-45 bars. These medium-carbon manganese steel bars, as per international specifications, are designed for use in applications demanding a combination of strength, toughness, and wear resistance. Samuel Steel’s adherence to quality guarantees every bar exceeds strict specifications, providing clients with reliable and long-lasting solutions for their industrial applications. Backed by a strong distribution network and reputation for quality, Samuel Steel remains a go-to in the steel industry.
Carbon Steel EN-45 bars contain mainly carbon (0.45–0.50%), manganese (0.60–0.90%), silicon (0.10–0.35%), phosphorus (≤0.035%), sulfur (≤0.035%), and chromium (≤0.30%). The bars have a tensile strength of 700–900 MPa, yield strength of 450–600 MPa, and elongation of 14–18%. Brinell hardness is 200 to 250 HB, which is best suited for those applications that demand a compromise between hardness and toughness.
| Grade | EN45 |
|---|---|
| Specification | BS970 1.0904 55Si7 55S6 55Si2Mn ASTM 9255 |

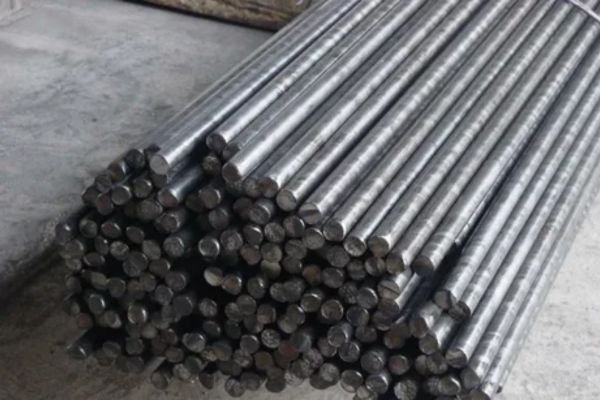

| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |

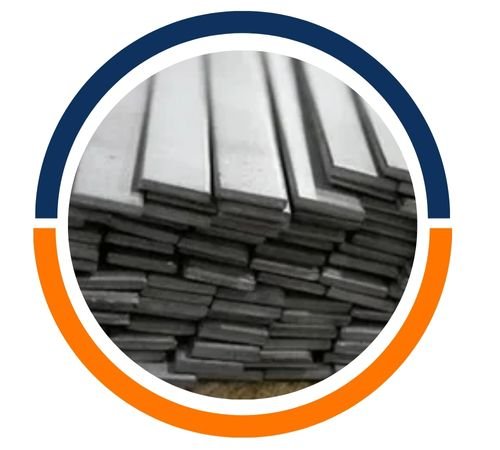

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

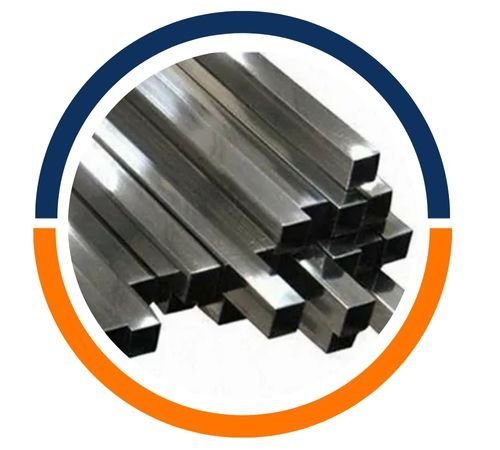

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |

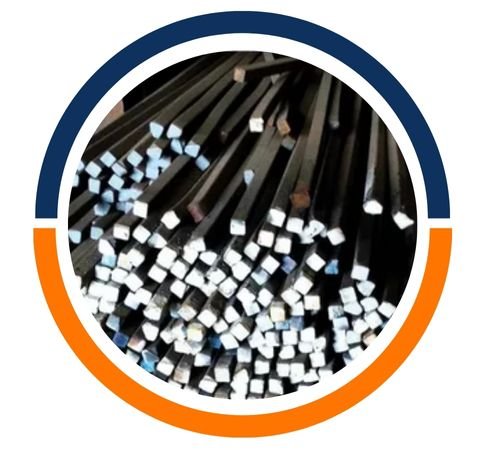

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, peeled, slit rolled edge, hot rolled, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |

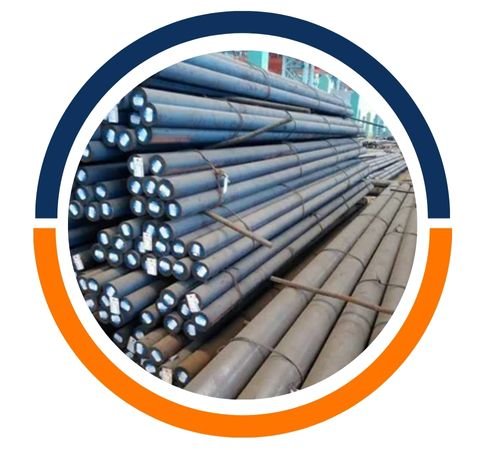

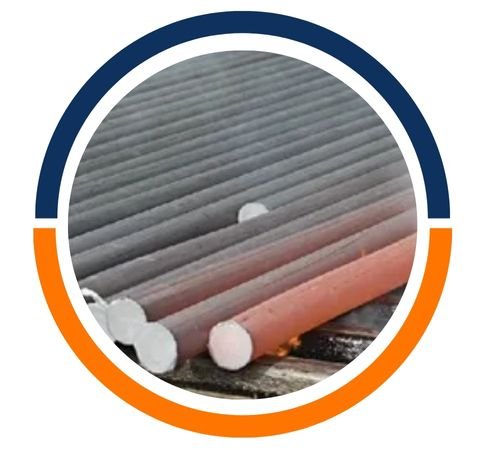

| Technique | EN45 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |

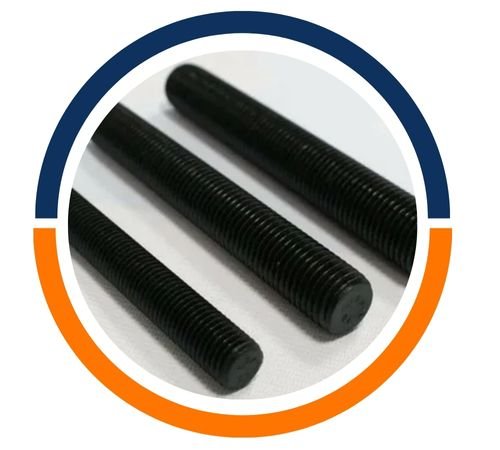

| Form | EN45 Welding Rod, Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Element | En42J |
| C | 0.75 – 0.90% |
| Mn | 0.50 – 0.90% |
| Si | 0/1 – 0.35 |
| S | 0.04% Max |
| P | 0.04% Max |
|
ULTIMATE TENSILE STRENGTH, S. (MPA) |
621 |
|---|---|
|
Modulus of elasticity, E (Gpa) |
204 |
|
Fatigue strength coefficient, of (Mpa) |
948 |
|
Fatigue strength exponent, b |
-0.092 |
|
Fatigue ductility coeffient ,ef |
0.26 |
|
Fatigue ductility exponent,c |
-0.445 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Â
Cut to size on request (tolerance +2/-0 mm). Standard lengths of EN45 Bars 2000 mm up to 6000 mm available
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 200.0 |
Carbon Steel EN-45 bars find extensive application across different industries based on their superior strength and toughness. In the automotive industry, these bars are used to produce components that are subjected to medium loading and wear, like leaf springs, suspension parts, and fasteners. They are also used in mechanical engineering applications for parts that need both hardness and toughness. Also, EN-45 bars find applications in general engineering use where reliability and durability are essential.
