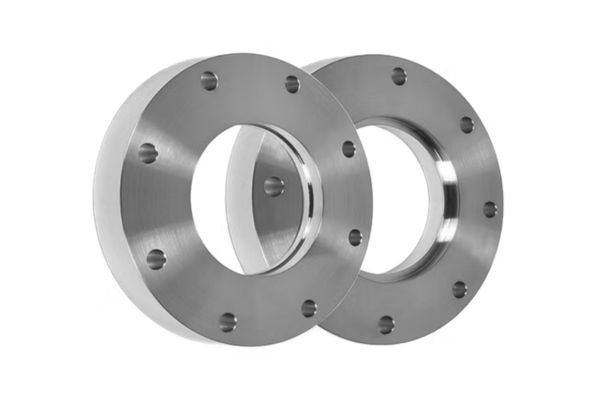

Operating from the heart of Nigeria’s capital, Samuel Steels stands as a trusted partner for industrial supply in Abuja, specializing in robust and reliable components. We understand the critical demands of local industries, which is why our focus on Alloy Steel F5 Flanges is driven by a commitment to quality and durability. Our clients can count on us for flanges that are built to withstand the toughest conditions, ensuring their operations run smoothly and safely with components they can depend on.
The strength of Alloy Steel F5 Flanges comes from their specific composition, which includes a notable amount of chromium and molybdenum. This blend gives the material an excellent resistance to corrosion and high temperatures, allowing it to maintain its integrity under pressure. These flanges are known for their impressive tensile strength and durability, making them less prone to cracking or deforming even in demanding service environments where other materials might fail.
Alloy Steel Flanges Specification :Â ASTM A182 / ASME SA182
Dimension Standard :Â ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Standard :Â ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Size :Â 1/2″ (15 NB) to 48″ (1200NB)
Class / Pressure :Â 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.

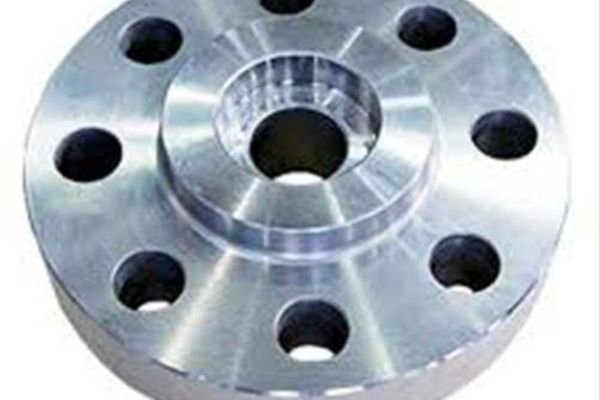

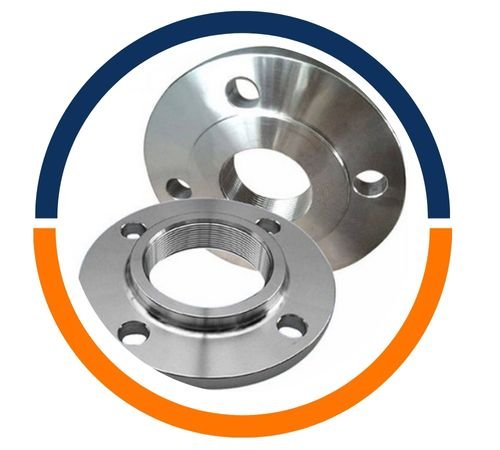

Flange Face Type :Â Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
DIN Flanges :Â DIN 2527, 2566, 2573, 2576, 2641,2642, 2655, 2656, 2627, 2628, 2629, 2631, 2632, 2633, 2634, 2635, 2636, 2637,2638, 2673.
JIS Flanges :Â JIS B2220 5K, JIS B2220 10K, JIS B2220 16K, JIS B2220 20K
BS Flanges :Â BS4504 PN 6, BS 4504 PN 10, BS4504 PN 16, BS4504 PN 25, BS4504 PN 40, BS 4504 PN 64, BS 4504 PN 100, BS 4504 PN 160, BS 4504 PN 250, BS 10, BS Table D, BS Table E, BS Table F, BS Table H.
| Grade | C | Mn | P | S | Si | Ni | Ch | Mo | Cb |
|---|---|---|---|---|---|---|---|---|---|
| F5 | 0.25 | 0.60 | 0.040 | 0.030 | 0.50 | 0.50 | 4.0-6.0 | 0.44-0.65 | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| F5 | 485 | 275 | 20 | – | 143-217 |
| STANDARD | UNS | WERKSTOFF NR. |
|---|---|---|
| Alloy Steel F5 | K41545 | 1.7362 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Normal Size Of Steel Pipe | (Inner Daimeter) | (Outer Diameter) | (Bolts Circle) | Raised (R) | Raised Face (RF) | Hight For (H) | Raised Face WT | Thick1 | FF (Flat Face) (Thick2) | B.C. For (Bolts Holes) | B.H. Number (Bolt Hole) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2 | 0.88 | 3.50 | 2.38 | 1.38 | .063 | 1.19 | .62 | .38 | .56 | .62 | 4 |
| 3/4 | 1.09 | 3.88 | 2.75 | 1.69 | .063 | 1.50 | .62 | .44 | .56 | .62 | 4 |
| 1 | 1.36 | 4.25 | 3.12 | 2.00 | .063 | 1.94 | .69 | .50 | .63 | .62 | 4 |
| 1-1/4 | 1.70 | 4.62 | 3.50 | 2.50 | .063 | 2.31 | .81 | .56 | .75 | .62 | 4 |
| 1-1/2 | 1.97 | 5.00 | 3.88 | 2.88 | .063 | 2.56 | .88 | .62 | .82 | .62 | 4 |
| 2 | 2.44 | 6.00 | 4.75 | 3.62 | .063 | 3.06 | 1.00 | .69 | .94 | .75 | 4 |
| 2-1/2 | 2.94 | 7.00 | 5.50 | 4.12 | .063 | 3.56 | 1.12 | .82 | 1.06 | .75 | 4 |
| 3 | 3.57 | 7.50 | 6.00 | 5.00 | .063 | 4.25 | 1.19 | .88 | 1.13 | .75 | 4 |
| 3-1/2 | 4.07 | 8.50 | 7.00 | 5.50 | .063 | 4.81 | 1.25 | .88 | 1.19 | .75 | 8 |
| 4 | 4.57 | 9.00 | 7.50 | 6.19 | .063 | 5.31 | 1.31 | .88 | 1.25 | .75 | 8 |
| 5 | 5.66 | 10.00 | 8.50 | 7.31 | .063 | 6.44 | 1.44 | .88 | 1.38 | .88 | 8 |
| 6 | 6.72 | 11.00 | 9.50 | 8.50 | .063 | 7.56 | 1.56 | .94 | 1.50 | .88 | 8 |
| 8 | 8.72 | 13.50 | 11.75 | 10.62 | .063 | 9.69 | 1.75 | 1.06 | 1.69 | .88 | 8 |
| 10 | 10.88 | 16.00 | 14.25 | 12.75 | .063 | 12.00 | 1.94 | 1.13 | 1.88 | 1.00 | 12 |
| 12 | 12.88 | 19.00 | 17.00 | 15.00 | .063 | 14.38 | 2.19 | 1.19 | 2.13 | 1.00 | 12 |
| 14 | 14.14 | 21.00 | 18.75 | 16.25 | .063 | 15.75 | 2.25 | 1.32 | 2.19 | 1.12 | 12 |
| 16 | 16.16 | 23.50 | 21.25 | 18.50 | .063 | 18.00 | 2.50 | 1.38 | 2.44 | 1.12 | 16 |
| 18 | 18.18 | 25.00 | 22.75 | 21.00 | .063 | 19.88 | 2.69 | 1.50 | 2.63 | 1.25 | 16 |
| 20 | 20.20 | 27.50 | 25.00 | 23.00 | .063 | 22.00 | 2.88 | 1.63 | 2.83 | 1.25 | 20 |
| 22 | 22.22 | 29.50 | 27.25 | 25.25 | .063 | 24.25 | 3.13 | 1.75 | 3.07 | 1.38 | 20 |
| 24 | 24.25 | 32.00 | 29.50 | 27.25 | .063 | 26.12 | 3.25 | 1.82 | 3.19 | 1.38 | 20 |

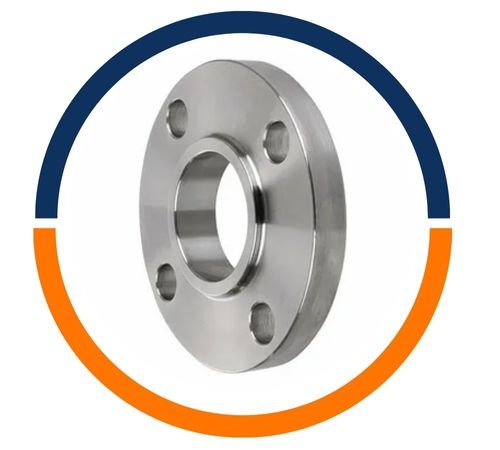

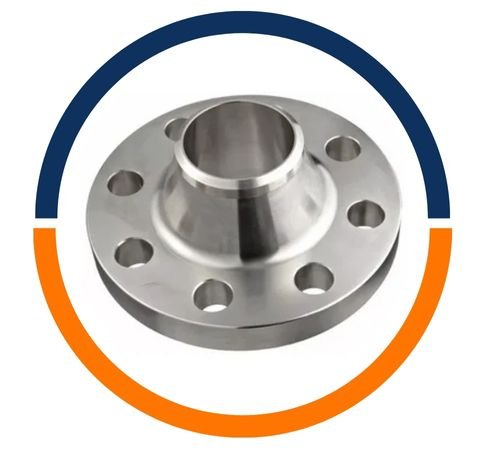

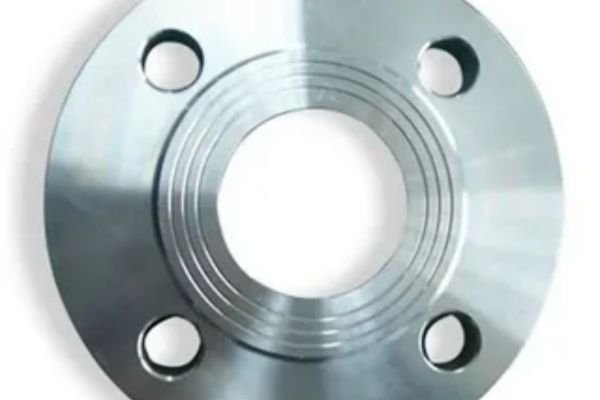

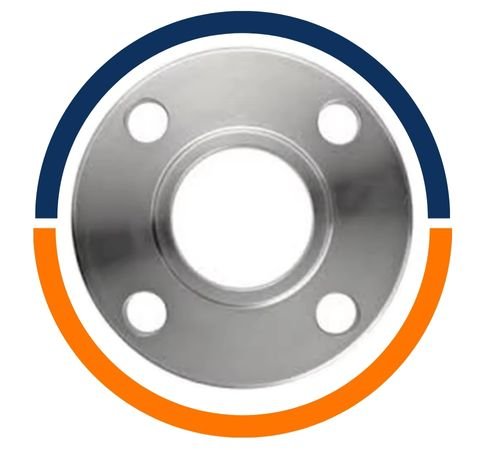

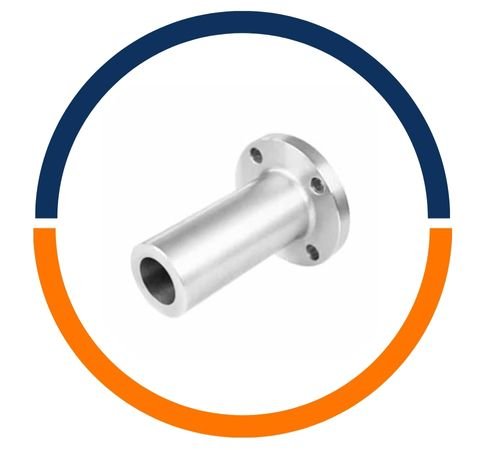

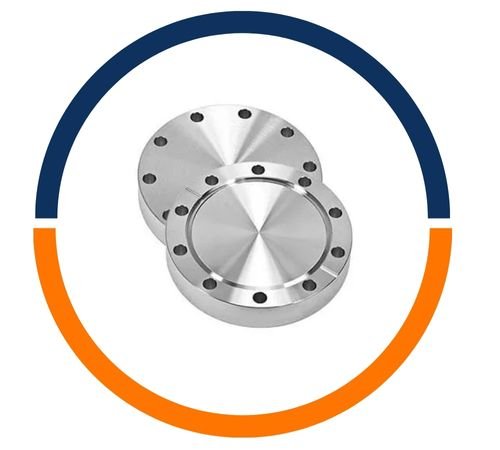

Samuel Steel is a top manufacturer and supplier of high-quality Alloy Steel F5 Flanges products in Abuja, Nigeria. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
You will typically find Alloy Steel F5 Flanges playing a vital role in systems that handle high-temperature and high-pressure media, such as in power generation plants and petroleum refineries. They are essential for connecting pipes, valves, and other equipment in chemical processing and oil and gas pipelines, where their ability to resist corrosion from sour gases and acidic substances is invaluable. Essentially, they are the unsung heroes in any setting that requires a secure, long-lasting connection under severe operating conditions.
