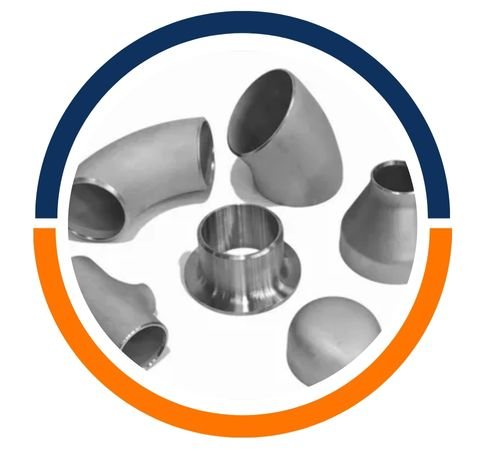

Samuel Steels, situated in Abuja, Nigeria, is a recognized manufacturer and supplier of premium Alloy Steel WP5 Pipe Fittings that are engineered to deliver outstanding strength, durability, and a long service life, among other, in the most demanding industrial applications. The organization aims to offer pressure and temperature-resistant precision of standard international quality product fittings. Through modern-day production plants and quality assurance based on strictness criteria, Samuel Steels is producing reliable and leak-tight joints. Their Alloy Steel WP5 Pipe Fittings find the greatest application in the oil & gas, power generation, petrochemical, and refinery sectors where, among others, efficiency, safety, and corrosion resistance are of paramount importance.
Alloy Steel WP5 Pipe Fittings mainly consist of iron, chromium (4–6%), molybdenum (0.45–0.65%), carbon, manganese, silicon as well as trace elements. This material makeup gives the pieces incredible resistance to heat, oxidation, and corrosion. In terms of mechanical properties, the fittings are also of very high quality and can, for instance, develop a tensile strength of 415 MPa and a yield strength of 205 MPa. Along with this, they provide excellent hardness, ductility, and toughness, thereby becoming the perfect products for high-temperature and high-pressure application while at the same time able to retain their structural integrity and be serviceable for a long period of time.
Specifications : ASTM A234 / ASME SA234
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP5 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP5 | 415 – 585 | ≥205 | ≥20 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP5 Pipe Fittings have found great acceptance in the sectors/industries that are in need of high-performance piping systems that are capable of withstanding extreme conditions and the like. Some are using them in heat and power plants, oil refineries, and petrochemical plants to name a few where they interconnect pipelines that carry steam, gas, or corrosive fluids. At the same time, the fittings have become boiler, heat exchanger, and process equipment chamber usage as high temperature service is inevitable. They have been very outstanding in this respect and it is due to this fact that their extraordinary resistance to scaling, oxidation, and stress corrosion has converted them into being very dependable as industrial operations must be equipped with long-lasting and durable piping components if they are to be productive.
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
