Samuel Steels is a well-respected manufacturer and supplier located in Abuja, Nigeria, focusing on **Carbon Steel A105 Forged Fittings**. With a strong dedication to quality, reliability, and customer satisfaction, Samuel Steels delivers high-performance forged fittings that adhere to international standards for strength and durability. The company caters to a variety of industries, such as oil and gas, petrochemical, power generation, and construction, providing products designed for exceptional corrosion resistance and pressure handling. Supported by cutting-edge manufacturing techniques and rigorous quality control, Samuel Steels guarantees that its forged fittings perform optimally in challenging industrial settings.
**Carbon Steel A105 Forged Fittings** are primarily made of carbon and manganese, with small amounts of silicon, sulfur, and phosphorus. This chemical makeup ensures excellent machinability and weldability. These fittings boast impressive mechanical properties, including a minimum tensile strength of 485 MPa, a yield strength of at least 250 MPa, and good elongation of 22%. They maintain remarkable toughness and hardness, even when exposed to high pressure and temperature conditions. This blend of mechanical strength, ductility, and resistance to stress corrosion makes A105 forged fittings ideal for critical industrial applications.
Standard : ASTM A105 / ASME SA 105
Dimensions : ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size : 1/8″ NB to 4″ NB

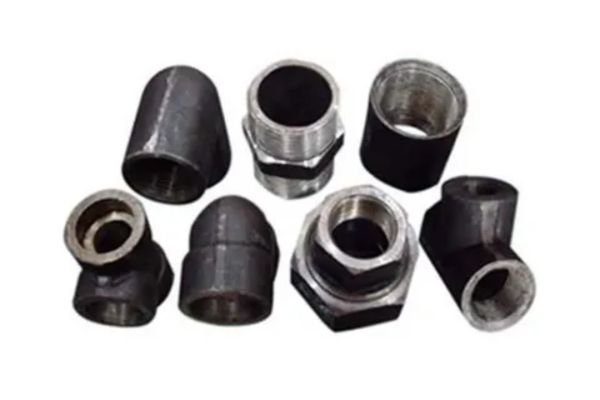

Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V |
| A105 | 0.35 | 0.10–0.35 | 0.60–1.05 | 0.035 | 0.040 | 0.12 | 0.40 | 0.30 | 0.40 | 0.08 |
| Grade | Yield Strength, Min (MPa) | Tensile Strength, Min (MPa) | Elongation, min, % |
| A105 | 250 | 485 | 30 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS A105 Forged Screwed Elbows, Street Elbow, A105 Carbon Steel Screwed Unequal Tee, Steel Straight Tee, Carbon Steel A105 Reducing Coupling, A105 Carbon Steel Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS A105 Threaded Bushing, A105 Carbon Steel Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel A105 Barrel Nipples, CS A105 Forged Threaded Boss, A105 Carbon Steel Forged Hex Head Bull Plugs |
| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel A105 High Quality Socket weld 90° Elbow, Straight and Reducing-on-the-Tees, Forged 45° Short Radius Elbow, CS A105 caps, 3000LB Socket Weld Cross |

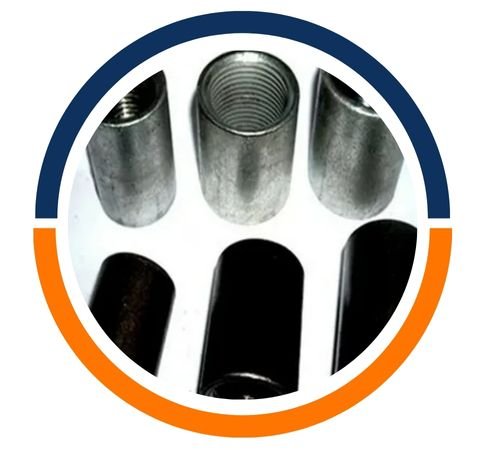

| MSS-SP-95 | Integrally Reinforced Forged Fittings – Socket Welding, Threaded, and Buttwelding Ends | CS A105 Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel A105 Coupling |
**Carbon Steel A105 Forged Fittings** are extensively utilized in industries that require strong, high-strength connections for piping systems. They are perfect for high-temperature and high-pressure applications, including oil and gas refineries, power plants, petrochemical sectors, and shipbuilding. These fittings are commonly employed to connect pipes, valves, and flanges, ensuring leak-proof and secure flow systems. Their ability to endure extreme mechanical stress and temperature changes makes them suitable for steam, water, and gas services. In both onshore and offshore installations, A105 forged fittings provide reliable performance, safety, and a long service life.
