Carbon Steel DIN 2440 Pipe Manufacturer and Supplier in Abuja, Nigeria

Carbon Steel DIN 2440 Pipe

Worldwide Shipping

Largest
Inventory

Modern
Equipments

Expert
Engineers

Efficient Factories

Well
Maintained

Samuel Steels stands out as a leading manufacturer and supplier of Carbon Steel DIN 2440 Pipes in Abuja, Nigeria. They’re well-regarded for providing dependable piping solutions tailored for industrial, mechanical, and structural needs. Crafted according to the DIN 2440 standard, these pipes guarantee precision, durability, and top-notch performance. Perfect for transporting water, gas, steam, air, and oil, they’re designed to handle both low and medium pressure systems. With impressive dimensional accuracy, smooth internal surfaces, and exceptional strength, Samuel Steels’ DIN 2440 Pipes are perfect for plumbing, industrial pipelines, and various engineering applications.

CS DIN 2440 Pipes Exporter in Nigeria, Carbon Steel DIN 2440 Pipe Price List in Abuja, Carbon Steel DIN 2440 Pipes Supplier in Kano, Carbon Steel DIN 2440 Pipe Exporter in Abuja, Carbon Steel DIN 2440 Pipes Exporter in Abuja, CS DIN 2440 Pipes Size Chart, Carbon Steel DIN 2440 Pipe Price in Port Harcourt, Carbon Steel DIN 2440 Pipes Weight Chart, CS DIN 2440 Pipes Thickness, Carbon Steel DIN 2440 Pipe Supplier in Ibadan, Carbon Steel DIN 2440 Pipes Stockist in Kano

Carbon Steel DIN 2440 Seamless Pipes

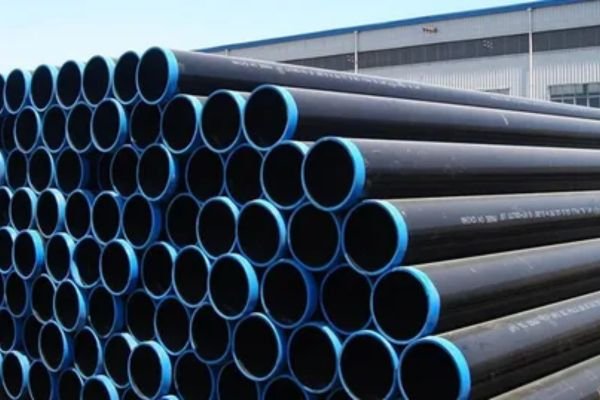

Carbon Steel DIN 2440 Welded Pipes

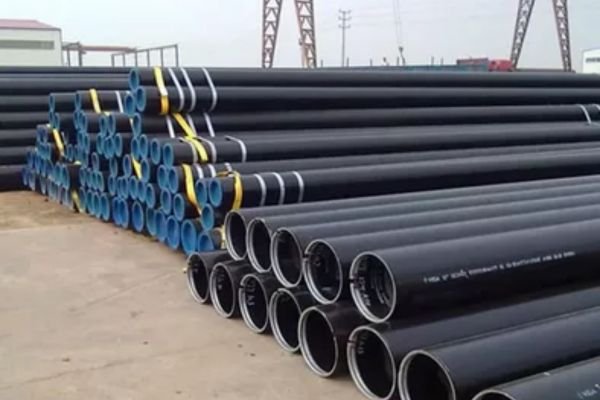

Carbon Steel DIN 2440 EFW Pipes

What is Carbon Steel DIN 2440 Pipe?

The Carbon Steel DIN 2440 Pipes are mainly made up of carbon (up to 0.25%), manganese (up to 1.20%), phosphorus (maximum 0.045%), sulfur (maximum 0.045%), and silicon (up to 0.40%), with iron making up the rest. These pipes boast a tensile strength ranging from 330 to 580 MPa and a yield strength of about 195 MPa. They offer good ductility and weldability, with an elongation percentage of around 20%. Their robust mechanical properties ensure reliable performance across varying pressure and temperature conditions, making them perfect for medium-duty industrial and fluid transport systems.

Carbon Steel DIN 2440 Pipe Exporter in Nigeria, Carbon Steel DIN 2440 Pipe Price List in Abuja, CS DIN 2440 Pipes Supplier in Kano, Carbon Steel DIN 2440 Pipes Exporter in Abuja, Carbon Steel DIN 2440 Pipe Exporter in Abuja, Carbon Steel DIN 2440 Pipe Size Chart, Carbon Steel DIN 2440 Pipes Price in Port Harcourt, Carbon Steel DIN 2440 Pipe Weight Chart, Carbon Steel DIN 2440 Pipe Thickness, CS DIN 2440 Pipes Supplier in Ibadan, Carbon Steel DIN 2440 Pipes Stockist in Kano

Carbon Steel DIN 2440 Pipe Chemical Composition

Steel Grade	C	Si	Mn	Cr	Ni	Mo
St 33	It is not normalized

Carbon Steel DIN 2440 Pipe Mechanical Properties

Steel Grade	Tensile Strength,N/mm2(min)	Yield Strength,N/mm2(min)	Elongation, % (min)
St 33.2	290 – 310	185	18

DIN 2440 Steel Pipes Sizes

DIN 2440
	DN	Zoll	d	s	kg/m
					schwarz	verzinkt
	8	1/4	13.5	2.35	0.65	0.68
	10	3/8	17.2	2.35	0.85	0.89
	15	1/2	21.3	2.65	1.22	1.27
	20	3/4	26.9	2.65	1.58	1.65
	25	1	33.7	3.25	2.44	2.55
	32	1 1/4	42.4	3.25	3.14	3.28
	40	1 1/2	48.3	3.25	3.61	3.77
	50	2	60.3	3.65	5.10	5.33
	65	21/2	76.1	3.65	6.51	6.80
	80	3	88.9	4.05	8.47	8.85
	100	4	114.3	4.5	12.10	12.64

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Carbon Steel DIN 2440 Pipe in Abuja, Nigeria

Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel DIN 2440 Pipe products in Abuja, Nigeria. Specializing in premium steel materials, we offer an extensive range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our diverse selection includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a commitment to dependable delivery and exceptional customer service, Jaxon Steel ensures the supply of superior materials that provide outstanding performance across various industrial applications. Trust Jaxon Steel for all your Carbon Steel DIN 2440 Pipe requirements.

Dimension Standard of DIN 2440 Pipes

Nominall Width>	Conn- ecting nomin- al width of the flttings according to DIN 2950 and DIN 2980	Whit- worth- pipe threads according to DIN 2999 Part1	Tube				Screw thread					Corresponding socket according to DIN 2986
			Outside diameterd1	Wall thick- nesss	Weight		Theo- retical screw thread diameter d2	Threads per 25.4mm	Usable screw thread length J min at a max.	Distance of screw thread dlameter d2 from tube end		Outside diameter	Length
			Outside diameterd1	Wall thick- nesss	Plain-end tube kg/m	socketed tubekg/m	Theo- retical screw thread diameter d2	Threads per 25.4mm	Usable screw thread length J min at a max.	a max.	a min.	min.	min.
6	1/8	R 1/8	10.2	2.0	0.407	0.410	9.728	28	7.4	4.9	3.1	14	17
8	1/4	R 1/4	13.5	2.35	0.650	0.654	13.157	19	11.0	7.3	4.7	15.4	25
10	3/8	R 3/8	17.2	2.65	0.852	0.858	16.662	19	11.4	7.7	5.1	21.3	26
15	1/2	R 1/2	21.3	2.65	1.22	1.23	20.955	14	15.0	10.0	6.4	26.4	34
20	3/4	R 3/5	26.9	2.65	1.58	1.59	26.441	14	16.3	11.3	7.7	31.8	36
25	1	R 1	33.7	3.25	2.44	2.46	33.249	11	19.1	12.7	8.1	39.5	43
32	1 1/4	R 1 1/4	42.4	3.25	3.14	3.17	41.910	11	21.4	15.0	10.4	48.3	48
40	1 1/2	R 1 1/2	48.3	3.25	3.61	3.64	47.803	11	21.4	15.0	10.4	54.5	48
50	2	R 2	60.3	3.65	5.10	5.17	59.614	11	25.7	18.2	13.6	66.3	56
65	2 1/2	R 2 1/2	76.1	3.65	6.51	6.63	75.184	11	30.2	21.0	14.0	82	65
80	3	R 3	88.9	4.05	8.47	8.64	87.884	11	33.3	241	17.1	95	71
100	4	R4	114.3	4.5	12.1	12.4	113.030	11	39.3	28.9	21.9	122	83
125	5	R 5	139.7	4.85	16.2	16.2	138.430	11	43.6	32.1	25.1	147	92
150	6	R 6	165.1	4.85	19.2	19.8	163.830	11	43.6	32.1	25.1	174	92
1) Referred to an average length of 6m

Carbon Steel DIN 2440 Pipe Supplier in Abuja, Carbon Steel DIN 2440 Pipes Exporter in Kano, CS DIN 2440 Pipes Sizes in mm, Carbon Steel DIN 2440 Pipes Manufacturer in Abuja, Carbon Steel DIN 2440 Pipes Price List in Ibadan, CS DIN 2440 Pipes Distributor in Abuja, Carbon Steel DIN 2440 Pipes in Port Harcourt, Carbon Steel DIN 2440 Pipe Supplier in Abuja, Carbon Steel DIN 2440 Pipe Distributor in Nigeria

Types of Carbon Steel DIN 2440 Pipe

Carbon Steel DIN 2440 Pipe Supplier in Abuja, CS DIN 2440 Pipes Exporter in Kano, Carbon Steel DIN 2440 Pipe Manufacturer in Abuja, Carbon Steel DIN 2440 Pipes Price List in Ibadan, Carbon Steel DIN 2440 Pipe Distributor in Abuja, Carbon Steel DIN 2440 Pipe in Port Harcourt, CS DIN 2440 Pipes Supplier in Abuja, Carbon Steel DIN 2440 Pipes Distributor in Nigeria, Carbon Steel DIN 2440 Pipe Sizes in mm

Uses of Carbon Steel DIN 2440 Pipe

Carbon Steel DIN 2440 Pipes find extensive use across various industries for water and gas supply lines, compressed air systems, and low-pressure steam piping. They’re also integral to plumbing networks, fire-fighting systems, oil refineries, and general mechanical applications. Thanks to their high strength, cost-effectiveness, and corrosion resistance (especially when galvanized), these pipes are suitable for both above-ground and underground installations. Additionally, they’re utilized in structural applications, scaffolding, and fabrication projects. The versatility and durability of DIN 2440 carbon steel pipes make them a top choice for construction, utility, and industrial piping projects around the globe.
