In the dynamic industrial landscape of Abuja, Samuel Steels has established itself as a trusted partner for robust and reliable materials. We specialize in supplying high-grade Alloy Steel P12 pipes, catering to the demanding needs of various sectors. Our commitment is to provide not just a product, but a dependable solution backed by deep industry knowledge and a focus on building lasting relationships with our clients, ensuring your projects are supported by quality and integrity from the ground up.
The strength of Alloy Steel P12 pipes comes from their specific composition, which includes chromium and molybdenum. This blend gives them excellent mechanical properties, allowing them to maintain strength and resist deformation even under high temperatures and intense pressure. Essentially, these pipes are engineered for toughness, offering superior performance in challenging environments where ordinary materials might fail, making them a go-to choice for demanding industrial systems.
| Size | 1/8NB TO 24NB IN |
| Type | Seamless |
| Outer Dimensions | 19.05mm – 114.3mm |
| ASTM A335 P12 Pipe Wall Thickness | 2.0mm – 14 mm |
| Length | max 16000mm |
| Schedule | Schedule 20 – Schedule XXS (heavier on request) up to 250 mm thk. |
| Length | Single Random, Double Random & Cut Length. |
| Tubing End | Plain End, Beveled End, Treaded. |
| Standard | ASTM A335 P12, SA335 P12 (with IBR Test Certificate) |
| Thickness | 3-12mm |
| Schedule | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
| Tolerance | Cold drawn pipe: +/-0.1mm
Cold rolled pipe: +/-0.05mm |
| Craft | Cold rolled and Cold drawn |

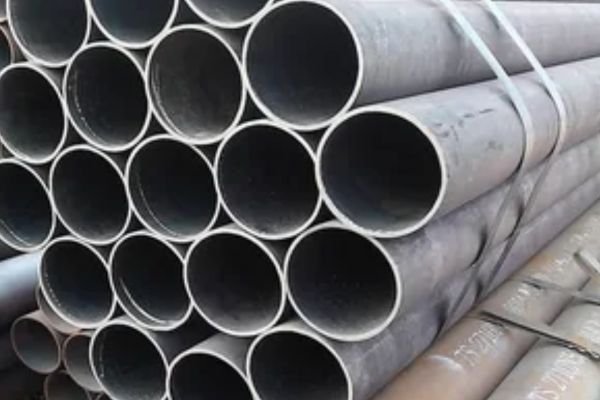

| Type | Seamless / ERW / Welded / Fabricated |

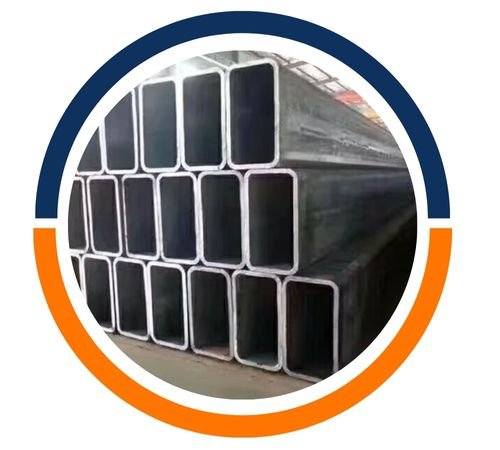

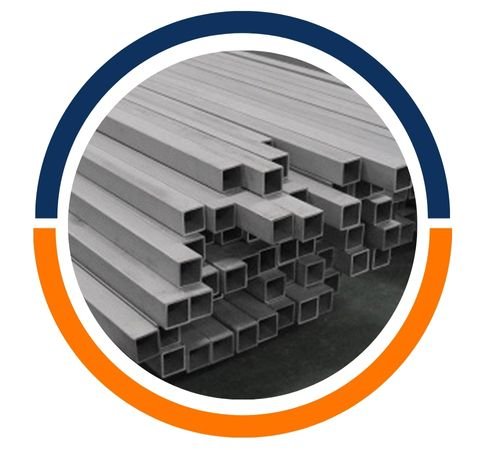

| available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
| Length | Standard Double & In Cut length also. |
| Specialized in | Large Diameter SA335 P12 |
| Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
| Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Alloy Steel P12 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 1.00 – 1.50 | 0.30 – 0.60 | 0.44 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Samuel Steel is a major manufacturer and a supplier of premium Alloy Steel P12 pipe in Abuja, the Nigeria. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | Equivalent material | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|---|
| A335 P12 | SA335 P12 | T12 | STPA 22 | K11562 | 3604 P1 620-440 | 17175 13CrMo44 | – | ABS 12 | KSTPA 22 | Sec 2 1Cr 1/2Mo440 |
| Â | Â | Â | Â | Â | Â | Â | Â | Â | Â | Sec 3 1Cr 1/2Mo440 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P12 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
Because of their ability to handle heat and pressure, Alloy Steel P12 pipes are essential in high-stakes environments. You will find them forming the backbone of power generation plants, critical refinery piping systems, and intricate chemical processing units. They are ideally suited for transporting steam, hot gases, and other aggressive media, ensuring safety and operational continuity in industries where reliability is absolutely non-negotiable and system failure is not an option.
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
