Samuel Steel has built a solid reputation as a leading manufacturer and supplier of Carbon Steel WPHY 56 Pipe Fittings in Abuja, Nigeria. They specialize in providing high-performance piping solutions that are designed to meet the rigorous demands of industrial environments. Known for their commitment to quality, precision, and a customer-first approach, Samuel Steel offers WPHY 56 fittings that adhere to international standards for strength, durability, and pressure handling. These fittings are specifically engineered to excel in high-pressure systems, making them perfect for critical applications. With the backing of cutting-edge technology, a team of skilled professionals, and stringent quality control measures, Samuel Steel guarantees timely delivery and dependable solutions for clients in the oil and gas, petrochemical, and infrastructure sectors, both in the Nigeria and beyond.
The Carbon Steel WPHY 56 Pipe Fittings are primarily made from carbon, with the addition of manganese, phosphorus, sulfur, and silicon to boost their strength and mechanical stability. These fittings boast a minimum yield strength of 56,000 psi (around 386 MPa) along with impressive tensile strength. They also demonstrate good toughness, weldability, and impact resistance, making them well-suited for high-pressure piping systems. Processes like normalizing and quenching further enhance their mechanical performance. Their unique composition ensures they maintain structural integrity under pressure, making them ideal for transporting fluids and gases in a range of service conditions, from moderate to extreme.
| Specifications | ASTM A860/ ASME SA860 |
|---|---|
| Grade | API 5L X56 |
| Dimension | ASME/ ANSI B16.9 | ASME B16.28 | MSS-SP-43 | BS1560 | BS4504 | BS10 |
| Thickness of Fitting | SCH10, SCH 20, SCH30, STD SCH40, SCH80, SCH60, XS, SCH100, SCH 120, SCH140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | Seamless Butt-Weld Fitting: From 1/2″ – 10″ Welded ButtWeld Fitting: From 1/2″ – 48″ |
| Bending Radius | Radius=1 D, 2D, 3 D, 5D, 6D, 8 D, 10D |
| Types | Welded | Seamless | Fabricated |
| Process of Manufacturing | Push, Press, Cast, Forge. |
| Grade | Cr | C | Cu | Mn | Cb | S | P | V | Si | Ni | Mo | Ti |
| A860 WPHY 52 Fitting | 0.30 | 0.20 | 0.35 | 1.00-1.45 | 0.06 | 0.03 | 0.01 | 0.10 | 0.15-0.40 | 0.50 | 0.25 | 0.05 |
| Fittings Element | Tensile Strength | Elongation | Yield Strength (0.2%Offset) |
| X56 | 515-690 | 28 % | 66 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
Samuel Steel is a top manufacturer and supplier of high-quality Carbon Steel WPHY 56 Pipe Fittings products in Abuja, Nigeria. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.

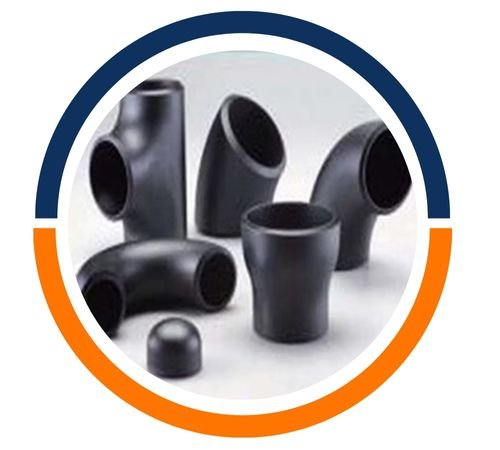

Carbon Steel WPHY 56 Pipe Fittings are extensively utilized in industries that demand high-strength, corrosion-resistant, and pressure-capable piping systems. They play a crucial role in oil and gas pipelines, petrochemical plants, power generation facilities, and offshore platforms, thanks to their ability to withstand high pressure and temperature variations. These fittings are also commonly found in shipbuilding, water treatment systems, and refineries. Available in various configurations such as elbows, tees, reducers, and caps, WPHY 56 fittings are essential for constructing intricate pipeline networks. Their strength, reliability, and ease of installation make them a go-to choice for many industrial applications.
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
