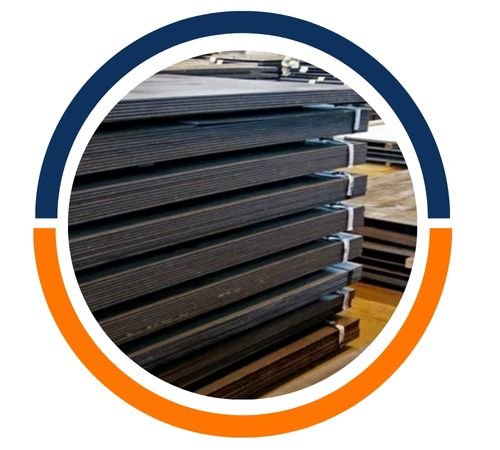

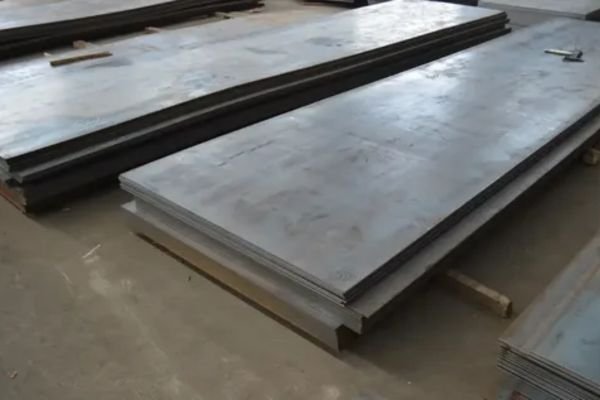

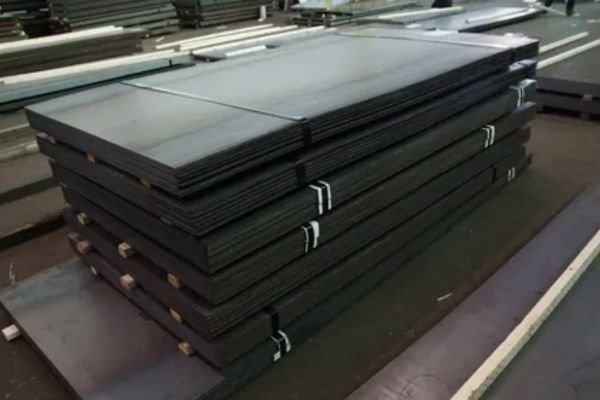

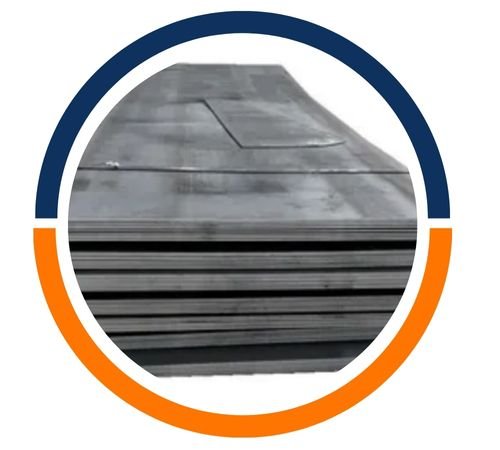

Samuel Steel has made a name for itself as a trusted manufacturer and supplier of top-notch steel products in Abuja, Nigeria. They specialize in solutions like the SA 516 GR.60/70N NACE plates, which are designed with a commitment to excellence. These steel plates are crafted to perform exceptionally well in tough environments, particularly those that face sour service conditions. Manufactured in line with NACE standards and international quality benchmarks, these plates are built to resist corrosion and hydrogen-induced cracking. Samuel Steel caters to various industries, including oil and gas, petrochemical, and power generation, ensuring timely deliveries, technical support, and dependable products for critical pressure vessel applications.
The composition of SA 516 GR.60/70N NACE Plates includes carbon, manganese, phosphorus, sulfur, and silicon, along with carefully controlled amounts of other alloying elements to boost performance. These plates are known for their impressive tensile and yield strength, good notch toughness, and excellent weldability. They undergo a normalization process to enhance their mechanical properties, ensuring a consistent grain structure and impact resistance, even in colder conditions. Their fine-grained makeup guarantees uniform strength and outstanding resistance to corrosion cracking, making them ideal for environments that contain hydrogen sulfide or other aggressive substances.
| Grade | ASME SA 516 GR.60/70N Boiler Plates |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Supply Condition | As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement. |
| Impact tested | 52° C |
| Tempering | Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F. |
| Applications | Used for weld fabrication of pressure vessels that require improved notch toughness for lower than ambient temperature service. |
| Process of Manufacturing | Hot-Rolled (HR) |
| C | Si | Mn | P | S | Al | Cr | Cu | Ni | Mo | Nb | Ti | V |
| 0.20 | 0.4 | 0.95/1.50 | 0.025 | 0.025 | 0.02 | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| 0.18 | 0.4 | 0.95/1.50 | 0.015 | 0.008 | 0.02 (Min) | 0.3 | 0.3 | 0.3 | 0.08 | 0.01 | 0.03 | 0.02 |
| Tensile strength | Yield strength | Elongation min, % 200 mm (8 in) | Elongation min, % 50 mm (2 in) |
| 415-550 MPa | 250 MPa | 21 | 25 |
| 485-620 (70-90) | 260 (38) | 17 | 21 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| British Standard | European Norm | ASTM/ASME | DIN |
| BS1501-161-430A | EN10028 P265GH | A/SA516 – Grade 60 | DIN 17155 HII |
| BS1501-224-490A/B | EN10028 P355GH | A/SA516 – Grade 70 | – |
Jaxon Steel is a trusted manufacturer and supplier of high-quality SA 516 GR.60/70N NACE Plates​ in Abuja, Nigeria. We specialize in premium steel products, including Alloy Steel, Carbon Steel, Mild Steel and Galvanized Steel, with a strong focus on Carbon Steel Sheet and Plates. Our extensive inventory also includes Pipes, Tubes, Flanges, Forged Fittings and Bars. Committed to fast delivery and exceptional customer service, we use only the finest raw materials to ensure superior strength, durability and performance for critical industrial applications. Contact us today for all your SA 516 GR.60/70N NACE Plates​ needs!
SA 516 GR.60/70N NACE Plates are commonly used in the construction of pressure vessels, boilers, heat exchangers, and storage tanks that are designed to handle corrosive and high-temperature conditions. They are extensively utilized in the oil and gas, petrochemical, and refinery sectors, ensuring safe operations in sour service environments. Additionally, these plates are also employed in power generation and offshore platforms, where superior mechanical properties and resistance to hydrogen-induced cracking are crucial. Their strength, durability, and adherence to NACE standards make them a reliable choice for critical industrial applications.
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
