Carbon Steel EN 10216-1 Pipe Manufacturer and Supplier in Abuja, Nigeria

Carbon Steel EN 10216-1 Pipe

Worldwide Shipping

Largest
Inventory

Modern
Equipments

Expert
Engineers

Efficient Factories

Well
Maintained

Samuel Steel is a prominent Carbon Steel EN 10216-1 Pipes manufacturer and supplier in Abuja, Nigeria. Samuel Steel is known for providing quality and precision work, and the company serves a wide range of clients in various industries. Samuel Steel’s EN 10216-1 pipes are renowned for superior strength, durability, and flexibility, and hence are a top pick for high-performance material applications. The company uses strict international standards to ensure that all pipes are of high quality, delivering consistent and reliable products to customers. Whether for use in construction, manufacturing, or other industrial applications, Samuel Steel is a reliable partner in the steel supply industry.

Carbon Steel EN10216-1 Pipe Supplier in Abuja, CS EN10216-1 Pipe Exporter in Kano, DIN 1629 CS EN10216-1 Pipe Sizes in mm, EN10216-1 Carbon Steel Pipe Manufacturer in Abuja, ASTM A106 EN 10216-1 CS Pipe Price List in Ibadan, CS EN10216-1 Pipe Distributor in Abuja, DIN 2448 EN10216-1 Carbon Steel Pipe in Port Harcourt, ASTM A106 EN 10216-1 CS Pipe Supplier in Abuja, DIN 2448 EN10216-1 Carbon Steel Pipe Distributor in Nigeria

Carbon Steel EN 10216-1 Seamless Pipes

Carbon Steel EN 10216-1 Welded Pipes

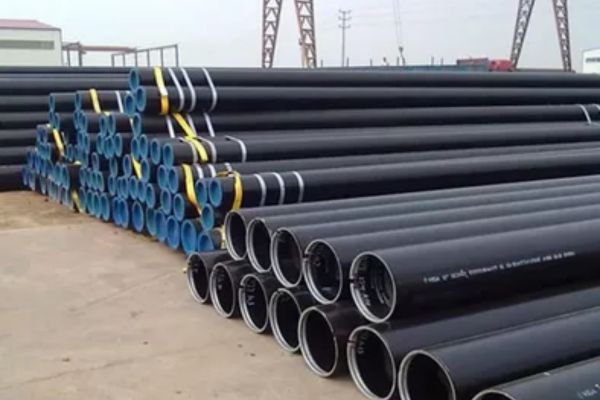

Carbon Steel EN 10216-1 EFW Pipes

What is Carbon Steel EN 10216-1 Pipe?

Carbon Steel EN 10216-1 Pipes are mainly made of Carbon (C) ≤0.20%, Manganese (Mn) ≤1.40%, Silicon (Si) ≤0.40%, Phosphorus (P) ≤0.025%, Sulfur (S) ≤0.020%, Chromium (Cr) ≤0.30%, Molybdenum (Mo) ≤0.08%, Nickel (Ni) ≤0.30%, and Copper (Cu) ≤0.30%. The pipes have heat treatment processes to gain mechanical properties like Yield Strength ≥235 MPa, Tensile Strength 360–500 MPa, and Elongation ≥25%. These properties make them acceptable for high-pressure use.

EN10216-1 Carbon Steel Pipe Exporter in Nigeria, DIN 1629 CS EN10216-1 Pipe Price List in Abuja, EN 10216-1 Steel Pipes Supplier in Kano, ASTM A53 Carbon Steel EN10216-1 Pipe Exporter in Abuja, Carbon Steel EN10216-1 Pipe Exporter in Abuja, CS EN10216-1 Pipe Size Chart, ASTM A106 EN 10216-1 CS Pipe Price in Port Harcourt, DIN 2448 EN10216-1 Carbon Steel Pipe Weight Chart, EN 10216-1 Steel Pipes Thickness, CS EN10216-1 Pipe Supplier in Ibadan,EN 10216-1 Steel Pipes Stockist in Kano

Carbon Steel EN 10216-1 Pipe Specifications

Standard: DIN2448, DIN1629, DIN17175, EN10255, EN10216
Grade: ST37, ST44, St45, ST52, S355JR
Size: From 1/2″ to 32″
Wall Thickness: 2-60mm
Length: 4M to 12 M

Carbon Steel EN 10216-1 Pipe Chemical Properties

Grade	C	Si	Mn	P	S	Cr	Ni	Cu
St37.0	=0.17	0.17-0.37	0.35-0.65	=0.025	=0.020	=0.25	=0.25	=0.25
St44.0	=0.21	0.17-0.37	0.50-0.80	=0.025	=0.020	=0.25	=0.25	=0.25
St55	0.33-0.41	0.17-0.37	0.50-0.80	=0.025	=0.020	=0.25	=0.25	=0.25
St52.0	=0.22	=0.55	=1.60	=0.025	=0.020	=0.25	=0.25	=0.25

Carbon Steel EN 10216-1 Pipe Mechanical Properties

Pipe types	Steel grades	Upper yield limit Re min for wall thickness in mm min			Tensile strength Rm MPa	Elongation A% min
ROUND SEAMLESS CARBON STEEL PIPES FOR SPECIAL REQUIREMENTS St37.0, St44.0, St52.0 according to DIN 1629	Steel grades	16	16 40	40 65	Tensile strength Rm MPa	1	t
	St37.0	235	225	215	350-480	25	23
	St44.0	275	265	255	420-550	21	19
	St52.0	355	345	335	50-650	21	19

If You Are Looking To Buy High Quality Pipes, Sheet, Fittings and Flanges

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Top Manufacturer and Supplier of Carbon Steel EN 10216-1 Pipe in Abuja, Nigeria

Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10216-1 Pipe products in Abuja, Nigeria. Specializing in premium steel materials, we offer a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to timely delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance in various industrial applications. Rely on Jaxon Steel for all your Carbon Steel EN 10216-1 Pipe requirements.

size chart of EN 10216-1 Pipe

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

Dimensional Tolerances of EN 10216-1 Seamless Pipes

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH 80 S		SCH 80		SCH 100		SCH 120		SCH. 140		SCH.160		SCH.XXS
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	2.41	0.47
8	1/4	13.7	3.02	0.82
10	3/8	17.2	3.2	1.12
15	1/2	21.3	3.73	1.64									4.75	1.97	7.47	2.59
20	3/4	26.7	3.91	2.93									5.54	2.93	7.82	3.69
25	1	33.4	4.55	3.29									6.35	4.3	9.09	5.53
32	11/4	24.2	4.85	4.53									6.35	5.69	9.7	7.88
40	11/2	48.3	5.08	5.49									7.14	7.35	10.16	9.69
50	2	60.3	5.54	7.6									8.71	11.26	11.07	13.65
65	21/2	73	7.01	11.59									9.53	15.15	14.02	20.72
80	3	88.9	7.62	15.51									11.13	21.67	15.24	28.11
90	31/2	101.6	8.08	18.92											16.15	34.56
100	4	114.3	8.56	22.66					11.13	28.75			13.49	34.05	17.12	41.66
125	5	141.3	9.53	31.44					12.7	40.9			15.88	49.87	19.05	58.31
150	6	168.3	10.97	43.21					14.27	55.03			18.24	68.53	21.95	79.1
200	8	219.1	12.7	65.63			15.06	76.93	18.24	91.73	20.62	102.47	23.01	112.97	22.23	108
250	10	273.1	12.7	82.8	15.06	97.27	18.24	116.38	21.41	134.9	25.4	157.51	28.58	174.95	25.4	155.5
300	12	323.9	12.7	98.95	17.45	133.88	21.41	162.14	25.4	189.82	28.58	211.31	33.32	242.4	25.4	189.82
350	14	355.6	12.7	109.04	19.05	160.54	23.8	197.74	27.76	227.88	31.75	257.47	35.71	286.04
400	16	406.4	12.7	125.2	21.41	206.4	26.19	249.34	30.94	290.88	36.53	338.32	40.46	370.74
450	18	457.2	12.7	141.35	23.8	258.29	29.36	314.54	34.93	369.34	39.67	414.74	45.24	466.67
500	2C	508	12.7	157.51	26.19	315.97	32.54	387.41	38.1	448.3	44.45	515.94	49.99	573.31
550	22	558.8	12.7	173.66	28.57	379.7	34.92	457.83	41.27	535.17	47.62	609.3	53.97	682.57
600	24	609.6	12.7	189.82	30.94	448.3	38.89	555.76	46.02	649.44	52.37	730.72	59.51	819.7

ASTM A53 Carbon Steel EN10216-1 Pipe Supplier in Abuja, EN 10216-1 Pipe Exporter in Kano,CS EN10216-1 Pipe Manufacturer in Abuja, EN 10216-1 Steel Pipes Price List in Ibadan, DIN 1629 CS EN10216-1 Pipe Distributor in Abuja, EN 10216-1 Pipe in Port Harcourt, Carbon Steel EN10216-1 Pipe Supplier in Abuja, DIN 2448 EN10216-1 Carbon Steel Pipe Distributor in Nigeria, ASTM A106 EN 10216-1 CS Pipe Sizes in mm

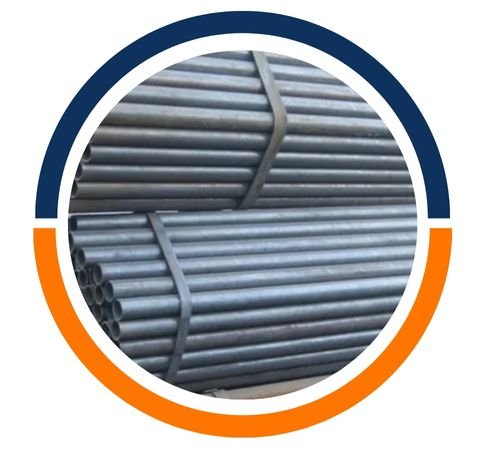

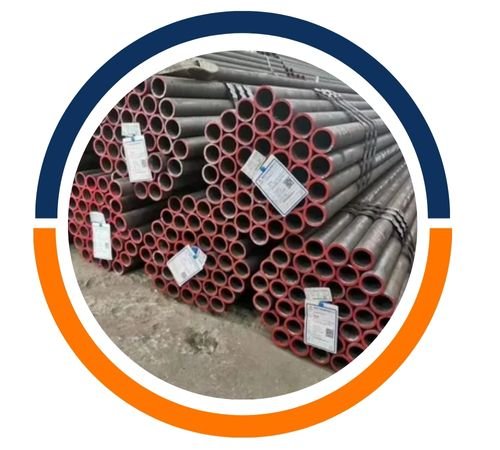

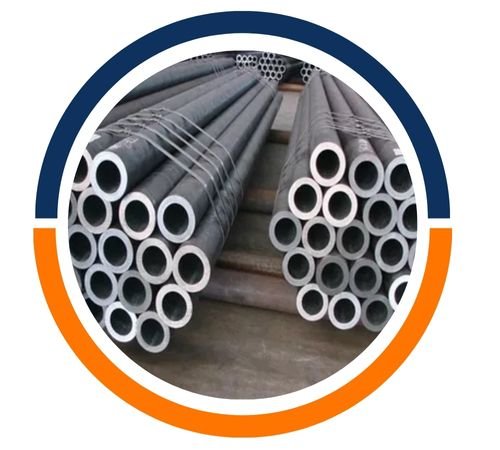

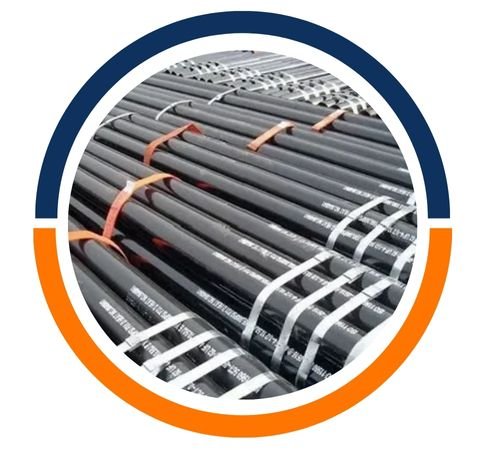

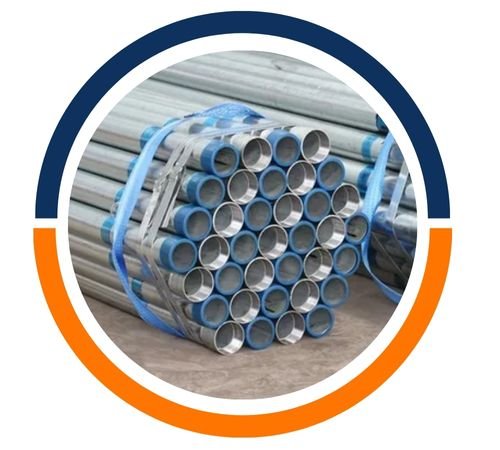

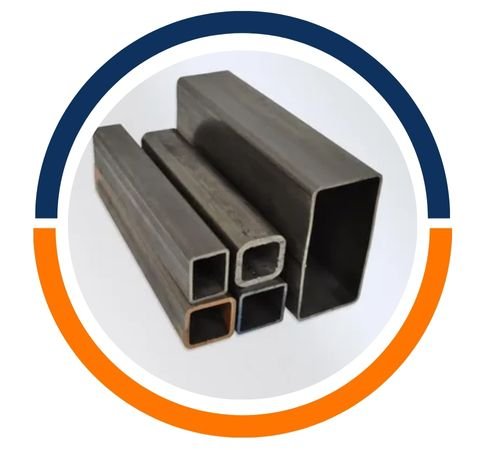

Types of Carbon Steel EN 10216-1 Pipe

Carbon Steel EN10216-1 Pipe Exporter in Nigeria, EN10216-1 Carbon Steel Pipe Price List in Abuja, EN 10216-1 CS Pipe Supplier in Kano, CS EN10216-1 Pipe Exporter in Abuja, EN 10216-1 Steel Pipes Exporter in Abuja, EN 10216-1 Pipe Size Chart, DIN 2448 EN10216-1 Carbon Steel Pipe Price in Port Harcourt, ASTM A106 EN 10216-1 CS Pipe Weight Chart,CS EN10216-1 Pipe Thickness, ASTM A53 Carbon Steel EN10216-1 Pipe Supplier in Ibadan, EN 10216-1 CS Pipe Stockist in Kano

Uses of Carbon Steel EN 10216-1 Pipe

Carbon Steel EN 10216-1 Pipes are extensively used across numerous industries because they possess good mechanical properties. They are generally used to produce pressure vessels, boilers, heat exchangers, and other parts that need high durability and strength. Their high wear resistance and capability to withstand extreme stress conditions make them well-suited for use in power generation, petrochemical, and oil & gas industries. Their high machinability also assures ease of fabrication, adding to their success in precision engineering applications.
