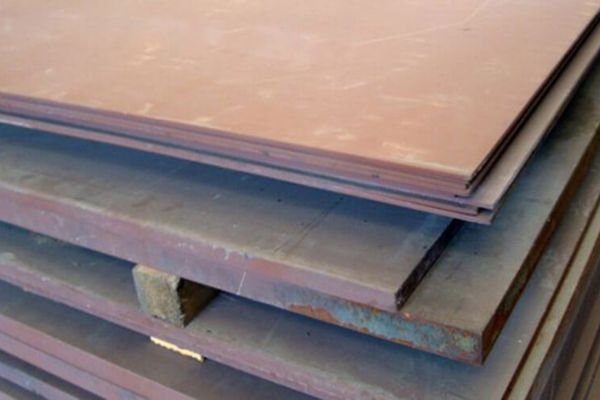

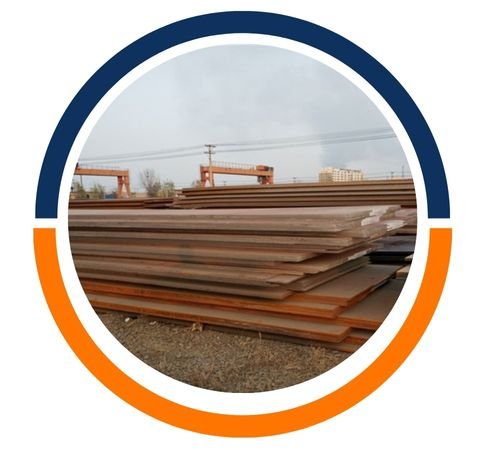

Samuel Steel is a leading manufacturer and supplier of 500 BHN Sheet and Plates in Abuja, Nigeria that provides wear-resistant steel products of high quality customized to suit the stringent requirements of different industries. Renowned for its quality and customer satisfaction, the company offers strong and durable steel plates that function exceptionally well in harsh environments. Having an established supply system and sophisticated manufacturing procedures, Samuel Steel caters to industries like mining, construction, and heavy machinery, providing timely supply and steady performance. It has earned them a reputable position in the Middle East steel industry.
The 500 BHN Sheets and Plates consist of a mix of carbon, manganese, chromium, nickel, and boron, which provides increased wear resistance and strength. These plates have very good mechanical properties with tensile strength 1400–1700 MPa and higher yield strength than 1000 MPa. Their 500 Brinell hardness provides excellent toughness and abrasion resistance. Although they are hard, they have good weldability and formability, which suits them for fabrication in industries. They are best suited for high-impact and abrasion conditions due to their strength and toughness.
| Heat Treatment | Rolling/Normalised, N, Q+T |
|---|---|
| Width | 1000mm-4500mm |
| Thickness | 5mm-150mm |
| Length | 3000mm-18000mm |
| Production | Hot-Rolled (HR) |
| Surface Paint | PVDF, PE, HDP, SMP, EP |
| Plate | C | Si | Mn | P | S | Cr | Ni | Mo | B | CEV | CET |
| THICKNESS MM | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | MAX % | TYPV | TYPV |
| 4-13 | 0.27 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.25 | 0.25 | 0.004 | 0.49 | 0.34 |
| (13) -32 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 0.50 | 0.30 | 0.004 | 0.62 | 0.41 |
| (32) -40 | 0.29 | 0.7 | 1.6 | 0.025 | 0.01 | 1.0 | 1.00 | 0.60 | 0.004 | 0.64 | 0.43 |
| (40) -80 | 0.30 | 0.7 | 1.6 | 0.025 | 0.01 | 1.50 | 1.50 | 0.60 | 0.004 | 0.74 | 0.46 |
| Thickness | Hardness HBW | Typical yield strength MPa, |
| mm | min – max 1) | not guaranteed |
| 3 – 80 | 425 – 475 | 1100 – 1300 |
| (80) – 100 | 410 – 475 | 1050 – 1300 |
| (100) – 130 | 390 – 475 | 1000 – 1300 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| 1/8″ | 3/8″ | 3/4″ | 1-1/2″ | 3″ |
| 3/16″ | 1/2″ | 1″ | 2″ | 4″ |
| 1/4″ | 5/8″ | 1-1/4″ | 2-1/2″ | |
| *1/8″ thick plate is available in one size only 60″x 120″. The 3/6″ thick plate is available only as 48″ x 144″ and 96″ x 144″. | ||||
| Thickness | Width | Length |
| 4 | 2000 | 6000 |
| 5 | 2000 | 6000 |
| 6 | 2000 | 6000 |
| 6 | 2500 | 6000 |
| 8 | 2000 | 6000 |
| 8 | 2500 | 6000 |
| 10 | 2000 | 6000 |
| 12 | 2000 | 6000 |
| 15 | 2000 | 6000 |
| 16 | 2000 | 6000 |
| 20 | 2000 | 6000 |
| 25 | 2000 | 6000 |
| 32 | 2000 | 6000 |
| 40 | 2000 | 6000 |
| 50 | 2000 | 6000 |
| 60 | 1800 | 3400 |
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
