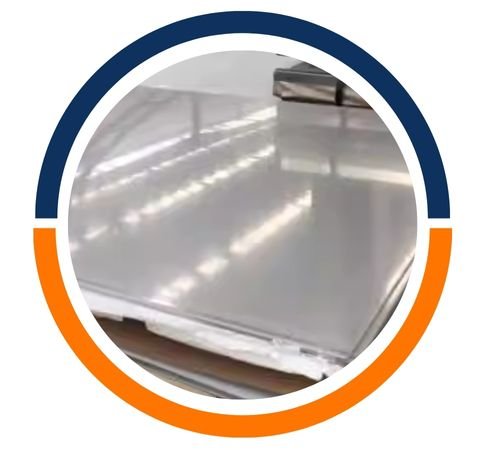

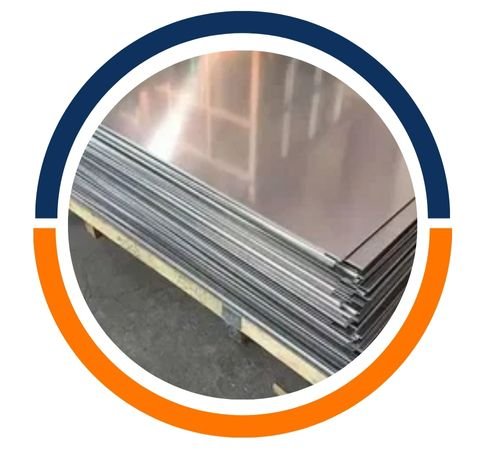

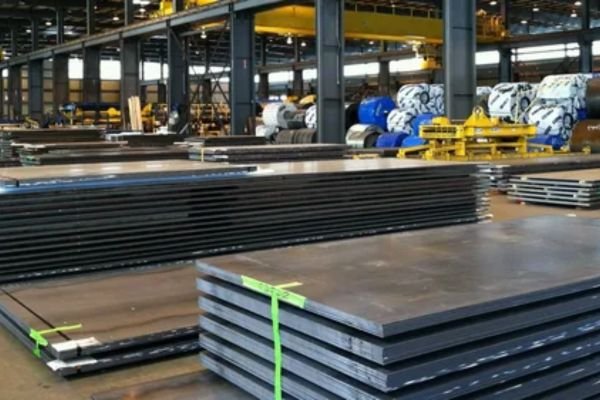

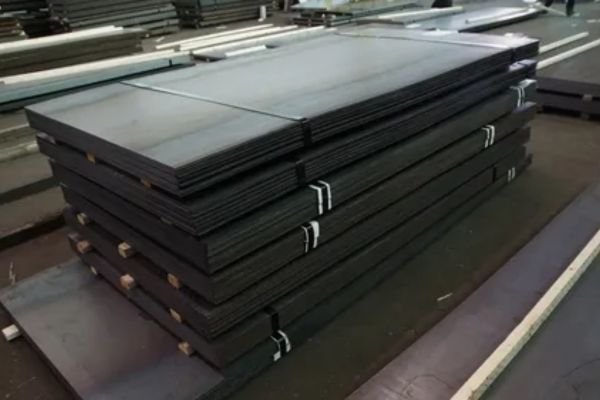

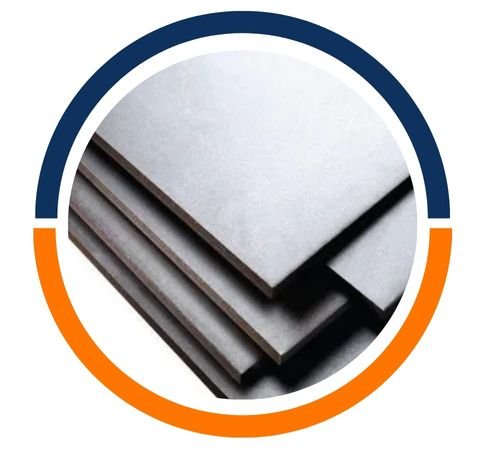

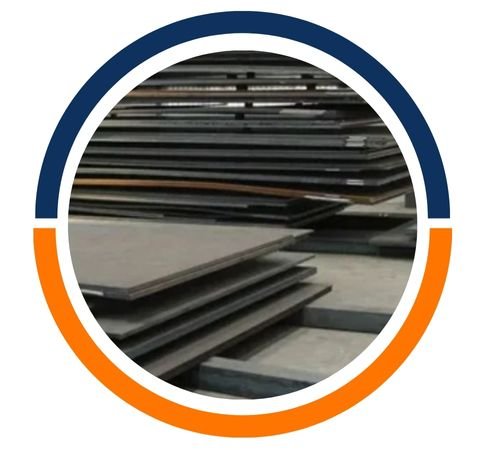

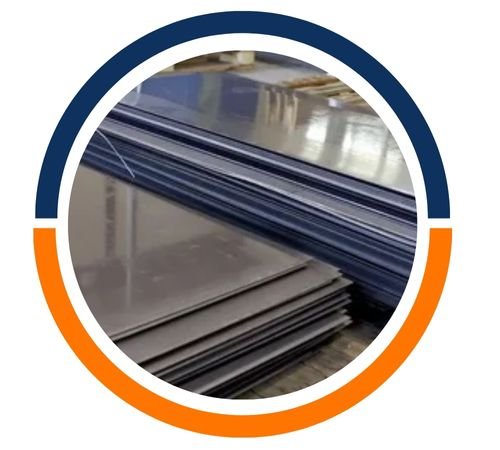

Samuel Steels, based in Abuja, Nigeria, has built a solid reputation as a reliable manufacturer and supplier of Rockstar 400 Sheets and Plates. These products are celebrated for their remarkable hardness, strength, and resistance to wear. Designed to thrive in tough conditions where durability and impact resistance are key, each sheet and plate from Samuel Steels is crafted to meet international quality standards. The company prides itself on delivering products that blend precision, toughness, and longevity. With state-of-the-art production facilities and a strong commitment to customer satisfaction, Samuel Steels serves various industries, including mining, construction, material handling, and heavy machinery, providing dependable and high-performance steel solutions.
Rockstar 400 Sheets and Plates are made up of a mix of carbon, manganese, chromium, nickel, and molybdenum, all of which contribute to their impressive hardness and strength. With a nominal hardness of 400 HBW, these plates offer excellent wear and abrasion resistance. Their tensile strength falls between 1250 and 1450 MPa, showcasing superior yield strength and impact toughness. A specialized heat treatment process gives the steel a fine-grain microstructure, enhancing its formability and machinability while keeping its hardness intact. These mechanical properties make Rockstar 400 perfect for environments that experience heavy impact and abrasive conditions.
Thickness :Â 6mm to 100mm
Width :Â 1,500mm to 2,500mm
Length :Â 6,000mm to 12,000mm

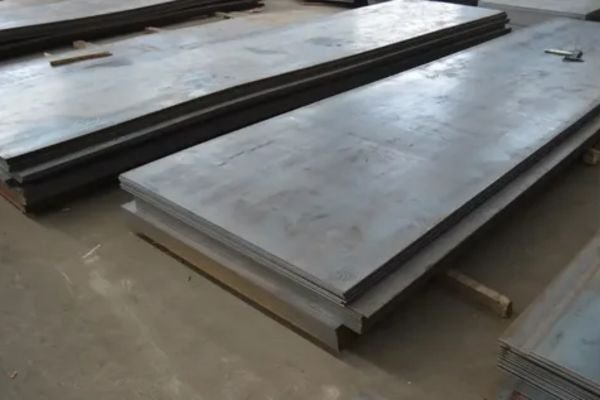

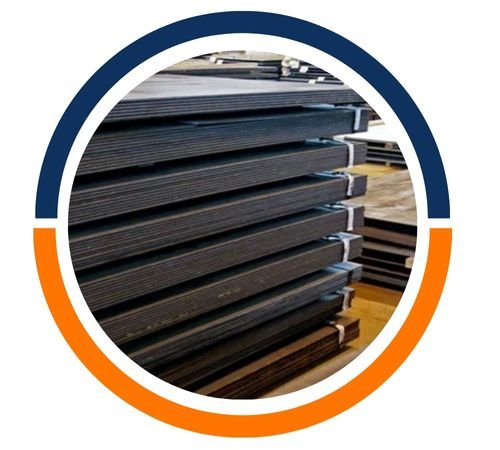

Production :Â Hot-Rolled (HR) / Cold-Rolled (CR)
Heat Treatment :Â N, Q+T
Surface Paint :Â EP, PE, HDP, SMP, PVDF
| Plate Thickness | C | Mn | P | S | Si | Cr | Ni | Mo | B | CE | PCM |
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Max % | Max % | Max %Â Â Max %Â Â Max % | Max % | Max % | Max % | Max % | Max | Max | ||
| 6.0 – 20.0 | 0.16 | 1.60 | 0.025 | 0.010 | 0.70 | 0.50 | 0.25 | 0.25 | 0.0040 | 0.45 | 0.28 |
| 21.0 – 32.0 | 0.18 | 1.60 | 0.025 | 0.010 | 0.70 | 1.00 | 0.25 | 0.25 | 0.0040 | 0.48 | 0.29 |
| 32.1 – 50.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 0.0040 | 0.57 | 0.33 |
| 50.1 – 75.0 | 0.22 | 1.60 | 0.025 | 0.010 | 0.70 | 1.40 | 0.50 | 0.60 | 0.0040 | 0.65 | 0.40 |
| Hardness | 360-430 BHN (On a milled surface 0.5-2 mm below the plate surface) | |||
|---|---|---|---|---|
| Yield Strength (MPa) | Tensile Strength (MPa) | % Elongation | Impact at -30°C | |
| (L0=50 mm) | (In Joules) | |||
| Typical values for 20 mm | 1000 | 1250 | 12 | 40 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Rockstar 400 steel plates and sheets find application in numerous uses with their high strength and toughness. They are applied in construction in concrete mixer drums, bucket lips, bottoms of trash trucks, street sweepers, and dump trailers, with exemplary wear resistance. Rockstar 400 is utilized in the mining sector in machinery like excavators, dragline bucket wear liners, and conveyor tubes that can withstand harsh conditions. Rockstar 400 is also applied in manufacturing heavy-duty trucks, crushers, and hoppers, guaranteeing structural stability against high loads .
Samuel Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Abuja, Nigeria.
